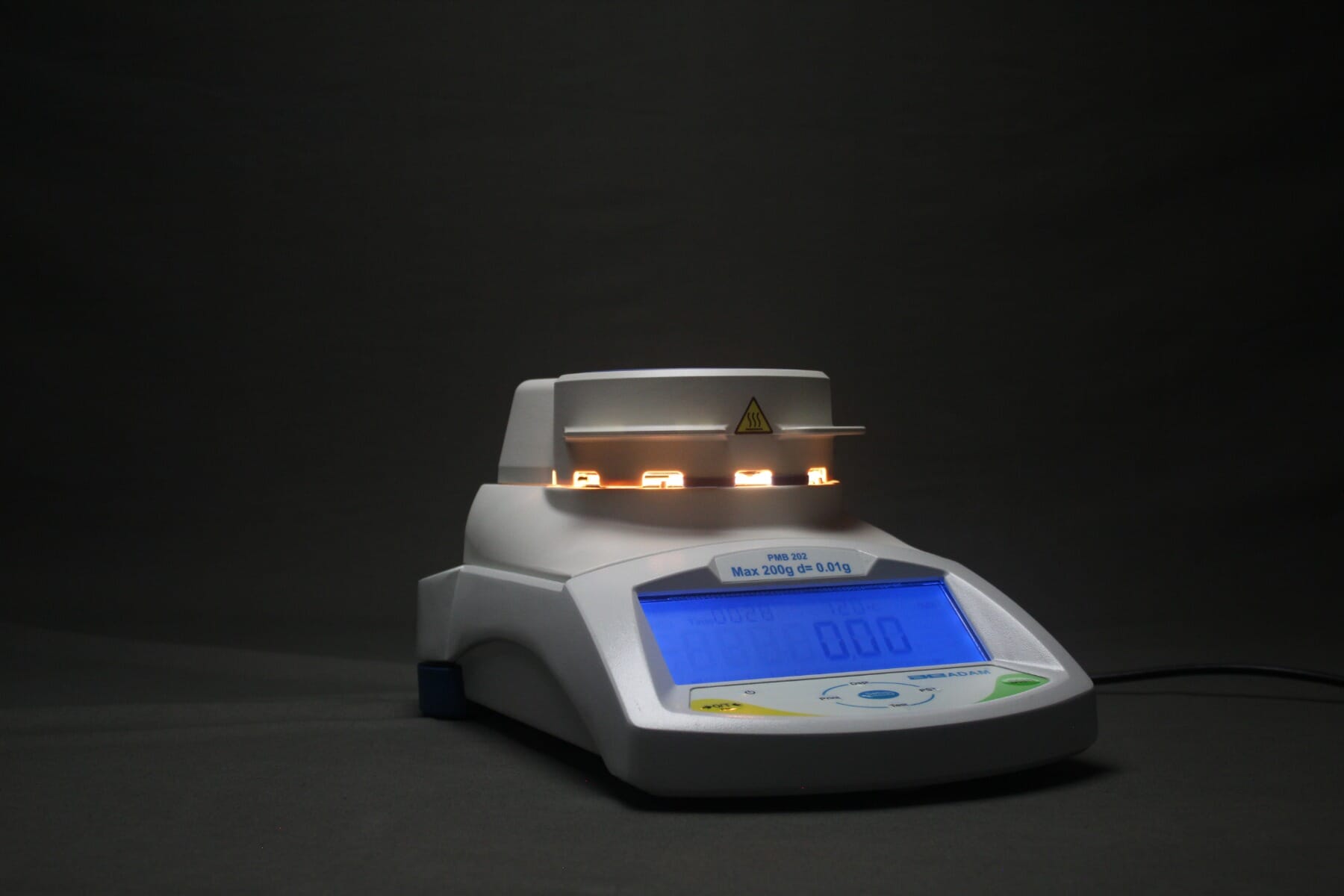

PMB Moisture Analyzer

With simple operation and rapid response time, the PMB offers top value in moisture analysis. USB and RS-232 interfaces facilitate connectivity, while another USB port allows storage of test programs and data on flash drives.
Warranty 5 years

Key Specifications

Capacity
50g to 200g
Readability
0.001g / 0.01% to 0.01g / 0.05%

Applications

WeighingWeighing
Moisture determinationMoisture determination

Features

Backlit DisplayBacklit Display
TareTare
RS-232RS-232
USBUSB
External CalibrationExternal Calibration
DateDate
TimeTime
GLPGLP
Security LockSecurity Lock
Multiple Weighing unitsMultiple Weighing units
Toggle icon descriptions

Overview

Adam PMB Moisture Analysers provide excellent value with high-level features. No additional software is required to run tests and take readings. PMB offers the freedom to collect data in the lab or in the field.  The included halogen bulb heats samples evenly and consistently with 1°C selectable increments.

What is the PMB Moisture Analyser used for?

Moisture analysers are used to determine moisture content in food, oils, creams, and building materials like cement. They're also ideal for cosmetics, food testing, quality control, agriculture and laboratories.

PMB Quick Start Guide

How to Use the PMB Moisture Analyser

PMB Moisture Analysers settings
Multiple Heat Settings
Three settings for heating samples include ramp-up, stepped temperatures and single temperature
PMB Moisture Analysers USB
RS-232 & USB Outputs
Includes 2 USB ports (one for data collection and one for communication with a PC or printer), as well as one RS-232 port
PMB Moisture Analysers heating
Fast Heating
400-watt halogen bulb heats samples quickly in 1°C selectable increments
PMB Moisture Analysers housing
Built To Last
Durable housing protects internal components and holds up to daily use
PMB Moisture Analysers display
Clear Results
Vivid, easy-to-read backlit LCD display with built-in capacity tracker for monitoring potential overloads
PMB Moisture Analysers accuracy
Accuracy Assured
A built-in leveling bubble helps ensure accurate measurements
PMB Moisture Analysers auto testing
Auto Start
Testing can be set to start automatically when the top lid closes
PMB Moisture Analysers pan lifter
Easy To Use
Pan lifter allows easy placement and removal of samples

With simple operation and rapid response time, PMB moisture analyzers offer the top value in their class.

A single 400-watt halogen bulb heats samples in 1 °C selectable increments. Three heating options give users the flexibility to customize test methods and temperatures for different materials.

The automatic test-setting function enables easy recall for frequent testing of the same items without additional user programming. USB and RS-232 interfaces provide computer and printer connections to store test programs and results. No additional software is needed to take readings, giving users total freedom to collect data on a production floor or in the field.

The PMB can be used to accurately determine the moisture content in food samples, oils and creams. Suitable for cosmetics, agriculture, food testing and science laboratories.

For more information on the PMB moisture analyzer, please contact us.

Features and Benefits

  • Vivid, backlit LCD easily visible in any lighting conditions
  • Programmable backlight can be set to "always on," "always off" or "light only when weighing"
  • Capacity tracker built into display for easily monitoring possible overloads
  • Scratch-resistant aluminum housing protects internal components
  • Color-coded keys facilitate quick recognition of the most frequently used buttons
  • Pan lifter allows easy placement and removal of samples
  • RS-232 interface provides speedy connection to computers and printers
  • USB host for memory card and USB I/O interface
  • USB interface included for data communication
  • Temperature range 50°C to 160°C in one-degree increments
  • Power cord
  • Three settings for heating sample include ramp-up, stepped temperatures and single temperature
  • Four preset drying modes allow test routines for several products
  • Audible overload alarm warns when capacity is exceeded
  • Testing can be set to start automatically when lid closes
  • Calibration for temperature and weight
  • Multilingual display permits use in various regions
  • Quick and easy configuration using the keypad
  • Zero-tracking feature ensures display returns to zero reading
  • Internal memory stores 49 different recipes and up to 99 test results, while additional test results and settings can be stored on a flash drive
  • Security slot for optional lock and cable to help prevent theft
  • A 5-year warranty means quality assured for years of use.

Models


Model
Capacity
Readability
Pan Size
Compare
Request a Quote
PMB Moisture Analyzer-PMB 53PMB 5350g0.001g / 0.01%3.9" / 100mm ø
PMB Moisture Analyzer-PMB 53-115VPMB 53-115V50g0.001g / 0.01%3.9" / 100mm ø
PMB Moisture Analyzer-PMB 163-115VPMB 163-115V160g0.001g / 0.01%3.9" / 100mm ø
PMB Moisture Analyzer-PMB 163PMB 163160g0.001g / 0.01%3.9" / 100mm ø
PMB Moisture Analyzer-PMB 202PMB 202200g0.01g / 0.05%3.9" / 100mm ø
PMB Moisture Analyzer-PMB 202-115VPMB 202-115V200g0.01g / 0.05%3.9" / 100mm ø
