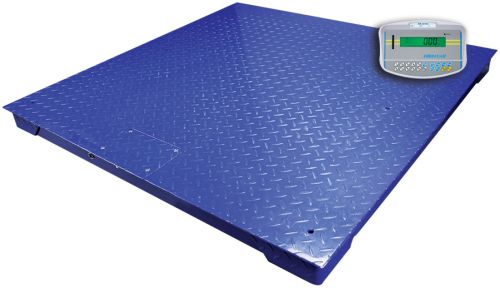

PTaM Approved Platforms with GKaM Checkweighing Indicator
PT industrial platform scales offer durability, quality construction and ease of use for weighing oversized or heavy objects on warehouse floors.
The PT features a large, steel base with a diamond plate surface, adjustable levelling feet and cable. Optional ramps facilitate loading and unloading heavy objects.
Adam offers a range of weight and counting indicators that can be combined with PT platforms, including the GK, GC and AE402 for expanded weighing applications that include checkweighing, parts counting and dynamic animal weighing.
For more information about our range of PT platform scales or associated indicators, please contact us.
Features
- Rugged construction stands up to industrial use
- Diamond-plate surface for added grip
- Optional ramps facilitate loading and unloading
- Can be used with any Adam indicators
- Approximately five-meter/15-foot shielded cable
- Adam Connect compatible for Bluetooth® data transfer to printers and PCs
- A 3-year warranty means quality assured for years of use.
General Specifications
- Weighing Units: g, kg, lb, lb:oz, oz
- Interface: RS-232
- Power Supply: 12VDC 800mA adapter
- Display: Backlit LCD with 0.8" / 20mm high digits
- Calibration: External calibration
- Housing: Mild steel base
- Operating Temperature: -10° to 40°C / 14° to 104°F
Models
| Model | Capacity | Readability | Pan Size |
|---|---|---|---|
| PT 112M [GKaM] | 2500lb / 1500kg | 0.5lb / 0.2kg | 47.2" x 47.2" / 1200 x 1200mm |
| PT 312-5M [GKaM] | 5000lb / 3000kg | 1lb / 0.5kg | 47.2" x 47.2" / 1200 x 1200mm |
Accessories
| Part Number | Description |
|---|---|
| 700100200 | Mild Steel Ramp - PT 12R 1200mm wide-700100200 |
| 700660289 | Calibration certificate-700660289 |
| 3052010526 | In-use wet cover-3052010526 |
| 1120014641 | AIP impact printer-1120014641 |
| 305200001 | In-use wet cover (pack of 5)-305200001 |
| 3051410045 | GK+GC Wall Bracket New Style-3051410045 |
| 700100199 | Mild Steel Ramp - PT 10R 1000mm wide-700100199 |
| 3074010507 | RS-232 to USB adapter-3074010507 |
| Part Number | Description |
|---|---|
| 700100201 | Mild Steel Ramp - PT 15R 1500mm wide-700100201 |
| 305200002 | In-use wet cover (pack of 10)-305200002 |
| 2050013351 | Indicator stand-2050013351 |
| 3074010267 | USB cable A-B-3074010267 |
| 3074010266 | RS-232 Cable 9F - 9F (Null Modem)-3074010266 |
| 600002028 | AdamDU Data Collection Program-600002028 |
| 1120015779 | ATP 2 Thermal Printer-1120015779 |
Dimensions
Adam Equipment follows a policy of continuous improvement and reserves the right to change specification and pricing without notice. Adam Equipment’s standard terms and conditions of sale apply. Errors and omissions excepted.
