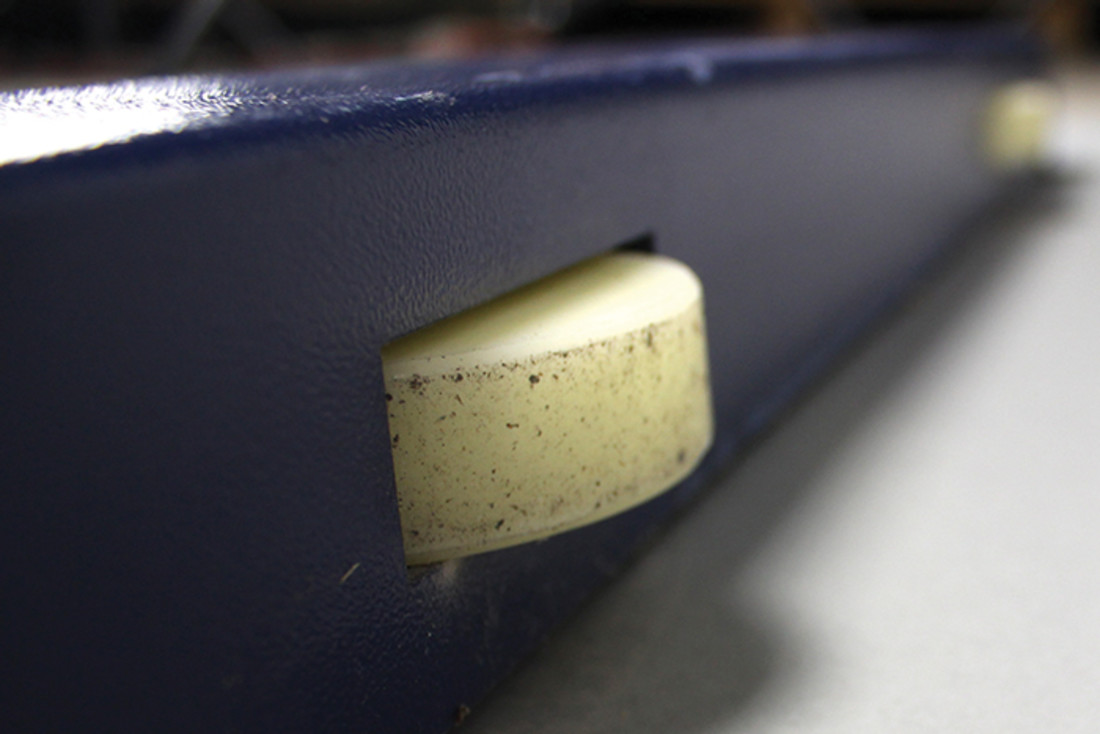

Integrated handles and wheels for transportation
PTM Drum and Wheelchair Platforms
The PTM wheelchair scale features a low-profile base and easy-access ramps on both sides, offering smooth transitions from the floor to the platform and is suitable for use in warehouses or medical facilities.
PTM drum and wheelchair scales are ideal for checking the weight of wheelchair occupants, barrels and drums, or loaded dollies. Its diamond plate surface provides good grip and a solid, steady weighing area. Handles and wheels enable easy accessibility in a wide range of environments from doctors surgeries, health centres and elderly care homes to warehouse and factory floors.
The PTM is available with the GK indicator or AE 403 indicator, offering a range of features and functions. The GK indicator allows a numeric tare value to be entered, while the AE 403 is IP68 rated for dusty and wet environments.

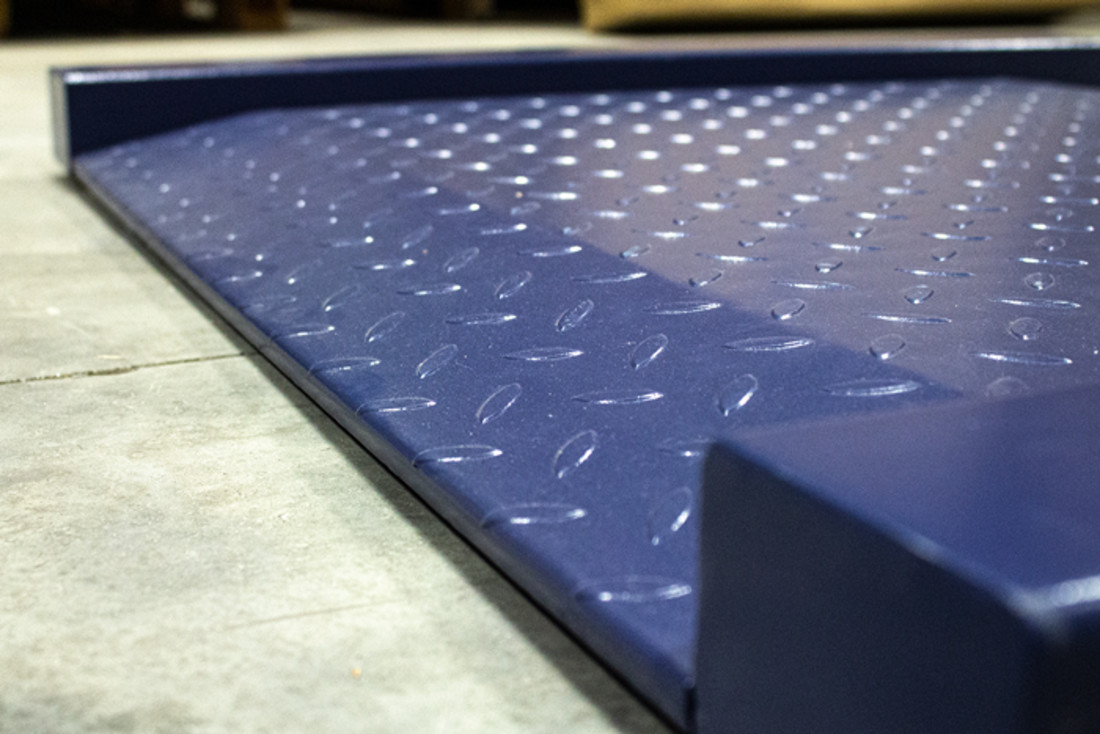

Built-in ramps on either side make access easier

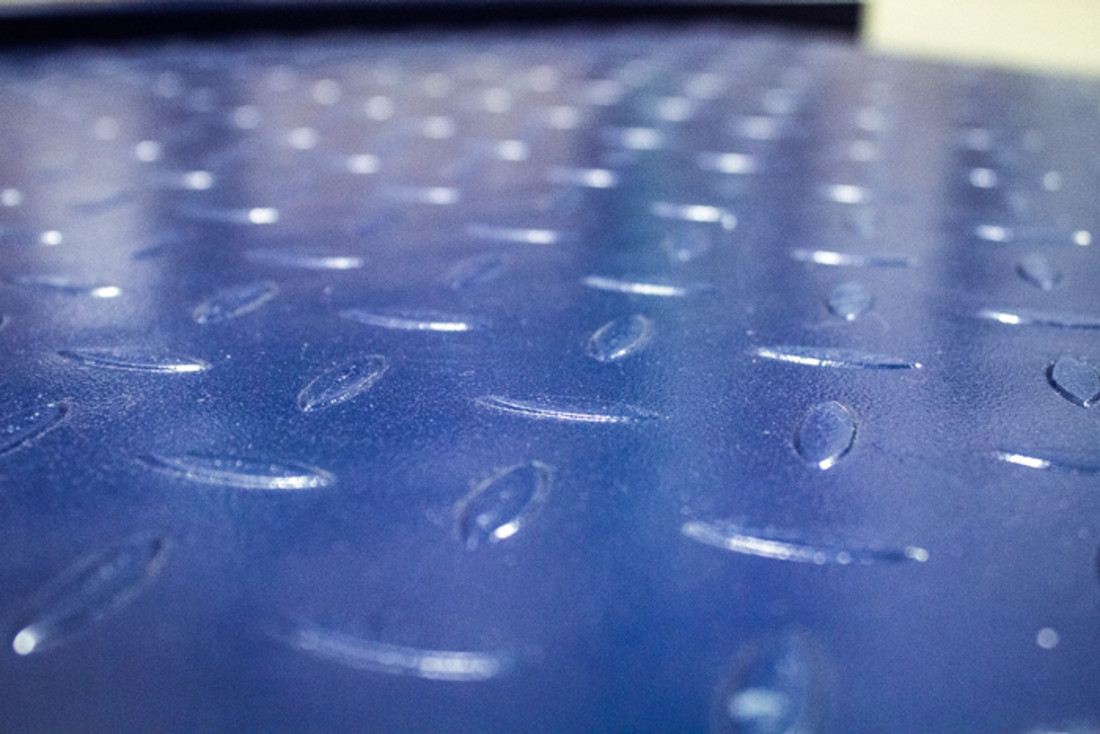

Tough, diamond plate surface for added grip
Features
- Adjustable leveling feet help optimize setup
- Built-in ramps on each side enable easy access
- Diamond-plate surface for added grip
- Heavy-duty rubber feet ensure stability of unit
- Integrated wheels permit easy movement
- Approximately three-meter/10-foot load cell cable
- Rugged construction stands up to industrial use
- Ramps allow easy access for wheelchair use
- Adam Connect compatible for Bluetooth® data transfer to printers and PCs
- A 3-year warranty means quality assured for years of use.
General Specifications
- Housing: Mild steel base
- Operating Temperature: -10° to 40°C / 14° to 104°F
Models
| Model | Capacity | Readability | Pan Size |
|---|---|---|---|
| PTM 500 | 1100lb / 500kg | 0.2lb / 0.1kg | 22.8" x 29.9" / 580 x 760mm |
| PTM 500 [AE403a] | 1100lb / 500kg | 0.2lb / 0.1kg | 22.8" x 29.9" / 580 x 760mm |
| PTM 500 [AE503] | 1100lb / 500kg | 0.2lb / 0.1kg | 22.8" x 29.9" / 580 x 760mm |
| PTM 500 [GK-S] | 1100lb / 500kg | 0.2lb / 0.1kg | 22.8" x 29.9" / 580 x 760mm |
| PTM 500 [GK-Plus] | 1100lb / 500kg | 0.2lb / 0.1kg | 22.8" x 29.9" / 580 x 760mm |
Accessories
| Part Number | Description |
|---|---|
| 3014012701 | RS-232 to AE 403 Adaptor ( 4F-9F ) 6 inch-3014012701-3014012701 |
| 700660289 | Calibration certificate-700660289 |
| 3074010507 | RS-232 to USB adapter-3074010507 |
| Part Number | Description |
|---|---|
| 2050013351 | Indicator stand-2050013351 |
| 3074010267 | USB cable A-B-3074010267 |

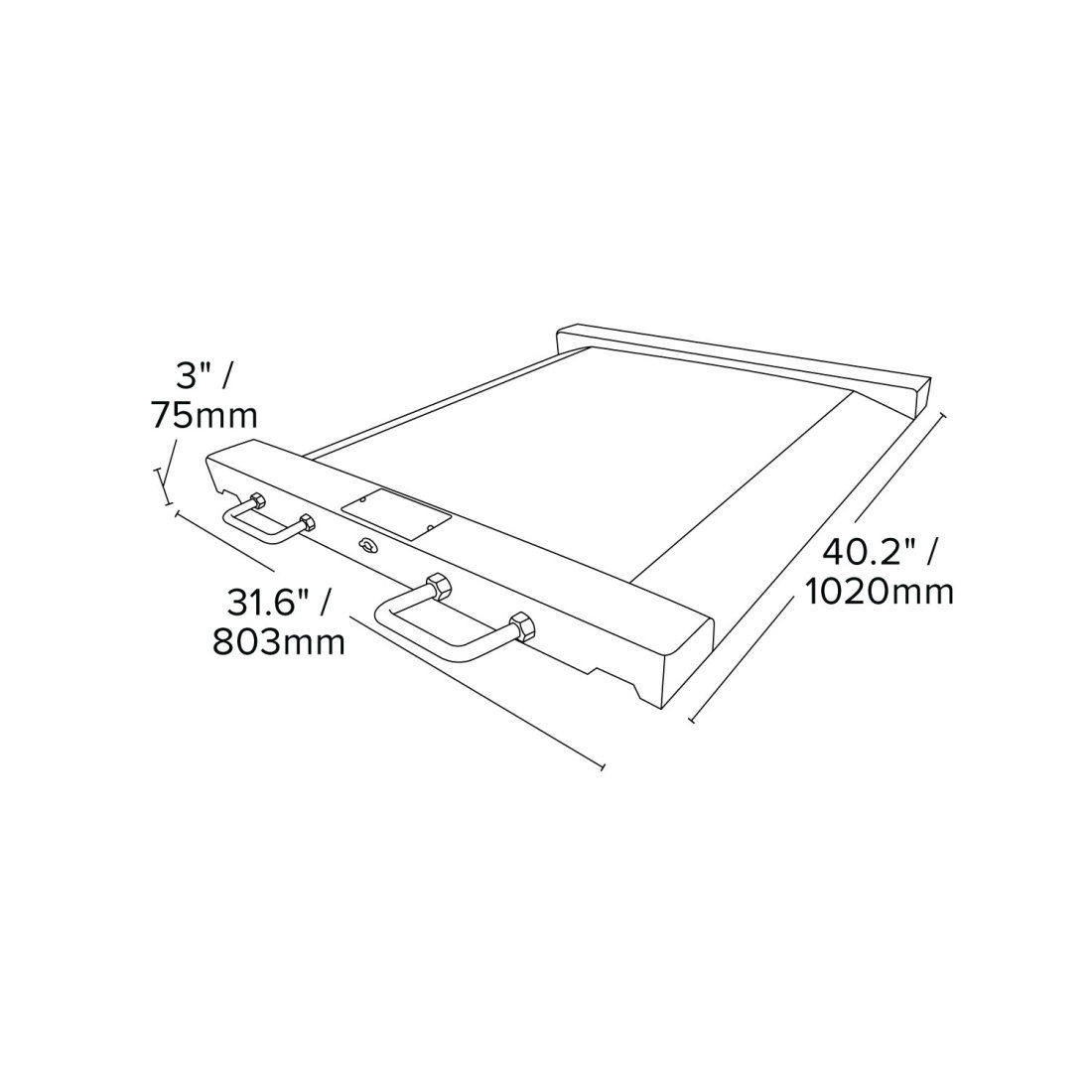

Dimensions
Adam Equipment follows a policy of continuous improvement and reserves the right to change specification and pricing without notice. Adam Equipment’s standard terms and conditions of sale apply. Errors and omissions excepted.
