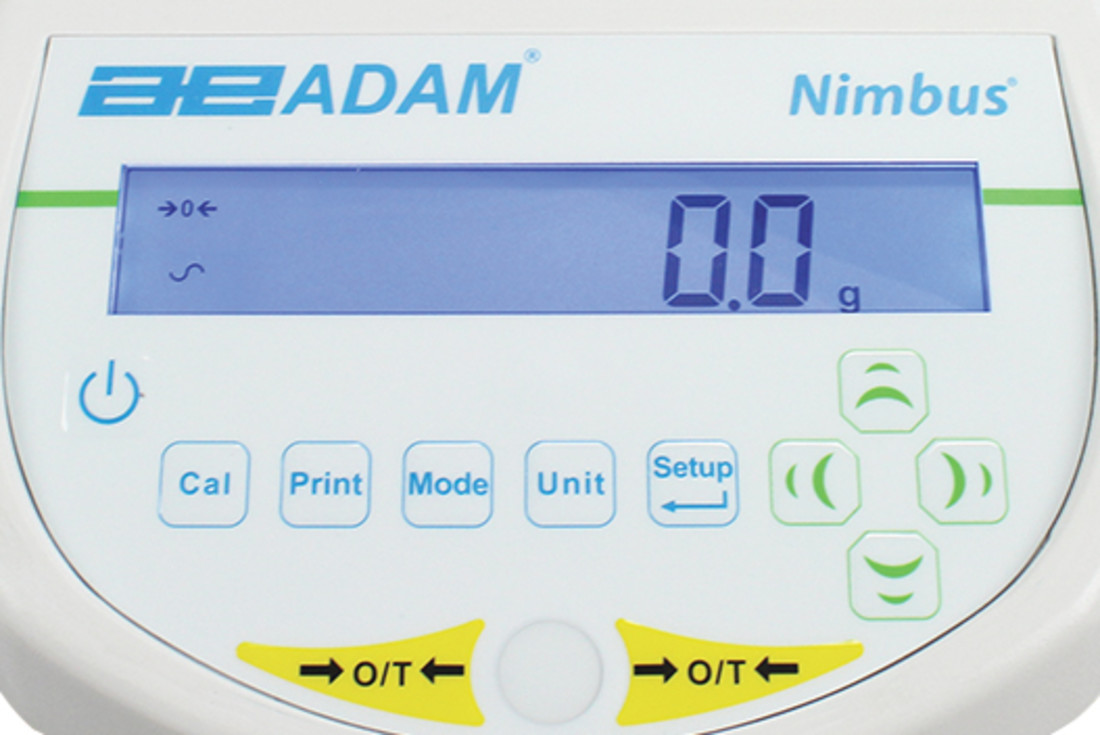

Sealed keypad protects against dirt and spills
Nimbus® Heavy Duty Precision Balances
Durable and reliable, Nimbus precision balances deliver a full breadth of readabilities ranging from 1mg to 0.1g. Innovative design enables a compact footprint, so it occupies minimal space while retaining a high level of performance. Single-piece construction offers greater stability, producing highly repeatable results. The weighing sensor in the Nimbus is crafted from a single block and contains fewer parts than a traditional force motor balance. This optimized internal mechanism is fabricated using hardened materials, helping the Nimbus tolerate rigorous laboratory use. Efficiency in the mechanics, plus improved processing power of the electronics, leads to excellent performance.

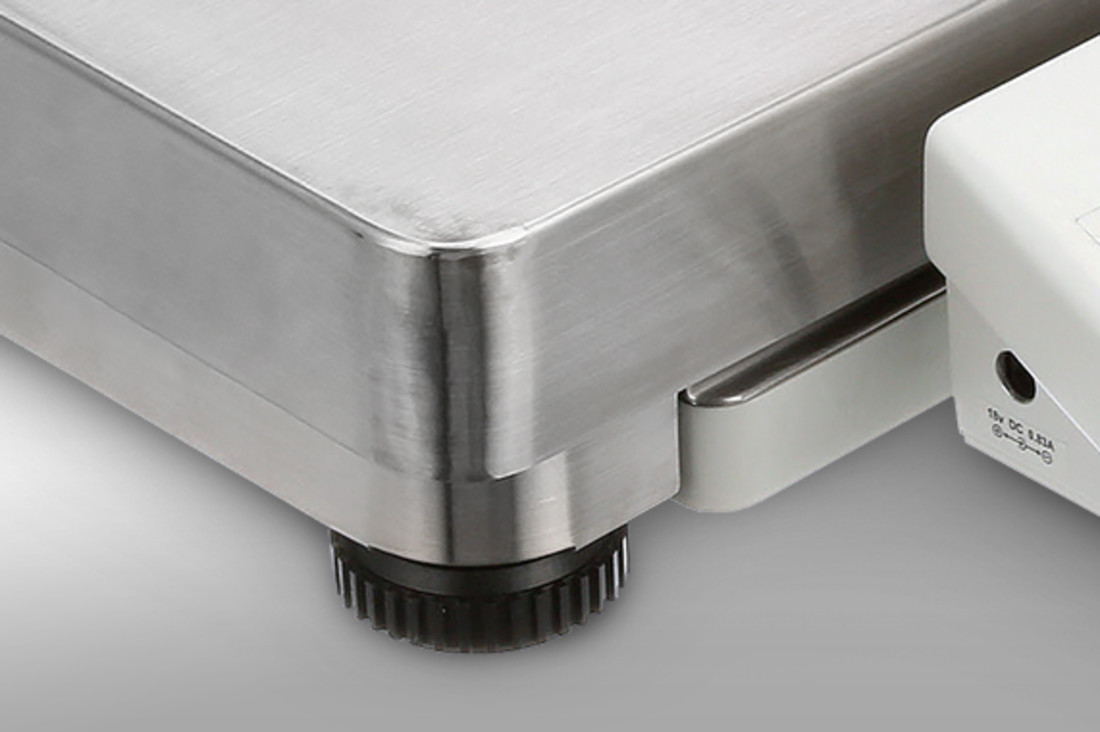

Large, grade 304 stainless steel pan for precision weighing to higher capacities

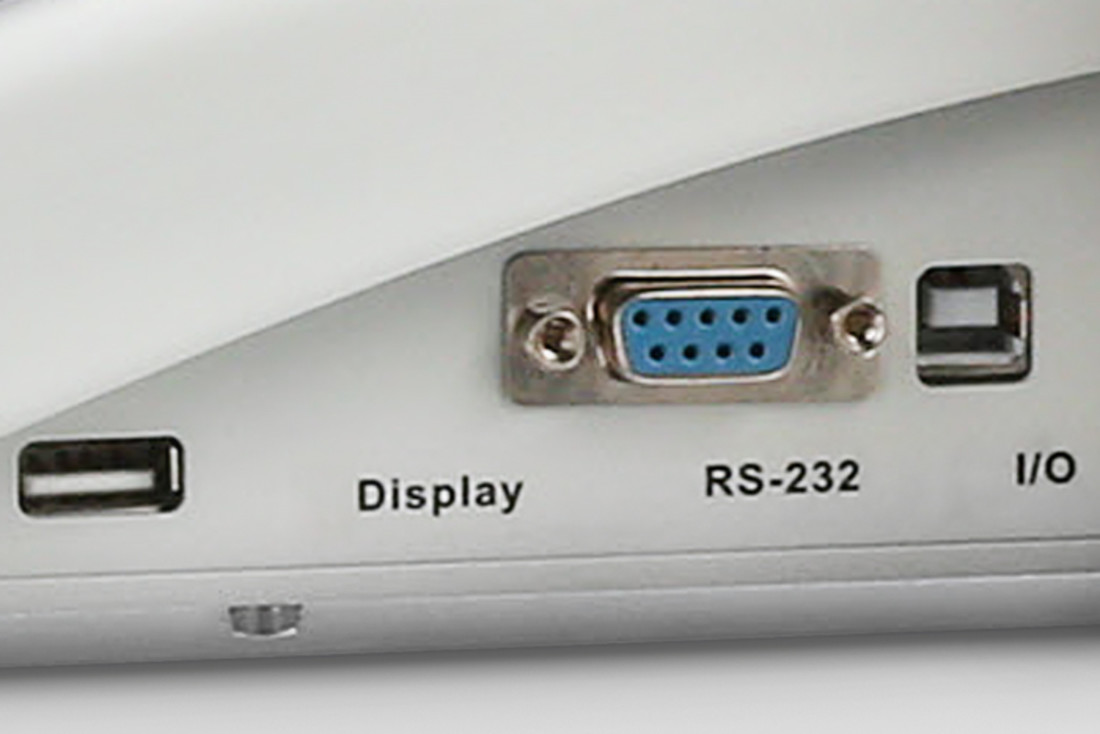

USB and RS-232 interfaces for speedy connection to printers and PCs
Features
- Vivid, backlit LCD easily visible in any lighting conditions
- Color-coded keys facilitate quick recognition of the most frequently used buttons
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Robust metal housing protects internal components in harsh environments
- Sealed keypad protects against dirt and spills
- USB and RS-232 interfaces provide speedy communication with computers and printers
- Large, grade 304 stainless steel pan allows swift cleaning
- AC adapter included
- External calibration allows for verification and adjustment with weights
- Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
- Selectable digital filtering helps minimize effects of vibration and disturbances
- Zero-tracking feature ensures display returns to zero reading
- Multilingual display permits use in various regions
- Adam Connect compatible for Bluetooth® data transfer to printers and PCs
- A 5-year warranty means quality assured for years of use.
General Specifications
- Weighing Units: g, kg, ct, GN, N, lb, oz, ozt, dwt, custom unit
- Interface: RS-232/USB
- Power Supply: 18VDC 830mA adapter
- Display: Backlit LCD with 0.8" / 20mm high digits
- Calibration: External calibration
- Housing: Extruded aluminum base with a die-cast aluminum case
- Operating Temperature: 15° to 35°C / 59° to 95°F
Models
| Model | Capacity | Readability | Pan Size |
|---|---|---|---|
| NBL 12001e | 12000g | 0.1g | 11.8" x 15.7" / 300 x 400mm |
| NBL 22001e | 22000g | 0.1g | 11.8" x 15.7" / 300 x 400mm |
| NBL 32001e | 32000g | 0.1g | 11.8" x 15.7" / 300 x 400mm |
Accessories
| Part Number | Description |
|---|---|
| 3014013041 | Security lock cable-3014013041 |
| 700660290 | Calibration certificate-700660290 |
| 3021210953 | Weigh-below hook-3021210953 |
| 1120014641 | AIP impact printer-1120014641 |
| 3014011014 | RS-232 cable 9M-9F-3014011014 |
| Part Number | Description |
|---|---|
| 3074010267 | USB cable A-B-3074010267 |
| 600002028 | AdamDU Data Collection Program-600002028 |
| 104008036 | AVT Anti-vibration table-104008036 |
| 1120015779 | ATP 2 Thermal Printer-1120015779 |

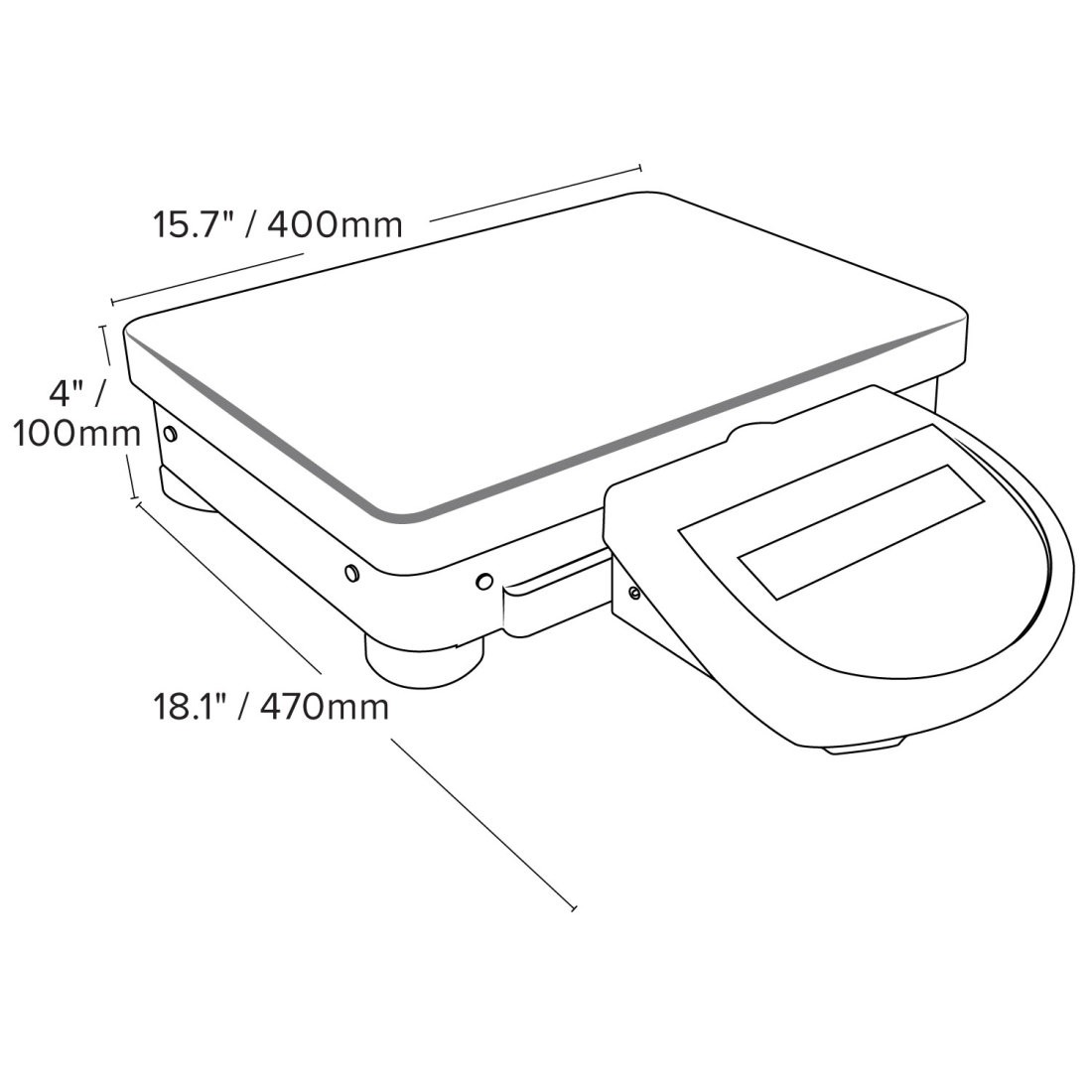

Dimensions
Adam Equipment follows a policy of continuous improvement and reserves the right to change specification and pricing without notice. Adam Equipment’s standard terms and conditions of sale apply. Errors and omissions excepted.
